CLSM - Evident Fluoview 4000 (Irchel)

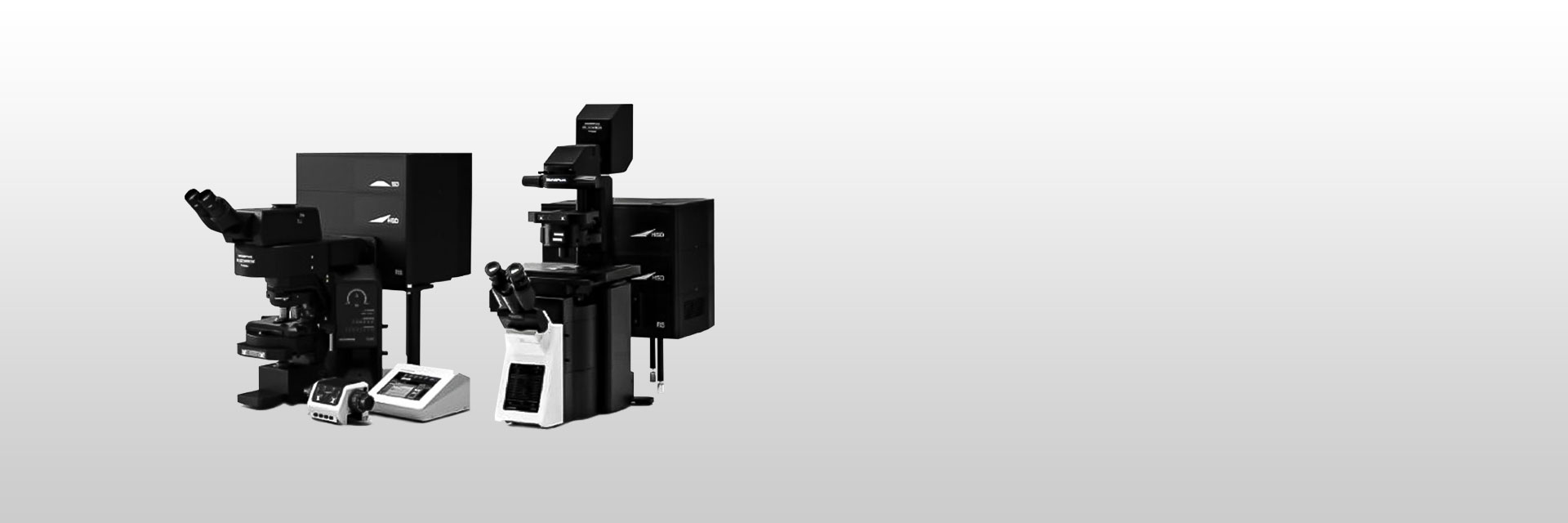

The Evident Fluoview 4000 confocal laser scanning microscope is a high-end confocal imaging systems equipped with

• SilVIR Next-Generation Detector Technology (Silicon photomultiplier (SiPM).
• Extented near infrared (NIR) lasers will allow to expand your spectrar range from 405nm to 785 nm, making it possible to multiplex up to six channels simultaneously.
• Resonant scanner allowing high speed imaging.
• Stage top incubation system allows control of temperature and CO₂ / O₂ levels enabling live cell experiments.

University Zurich, Irchel Campus, Room Y42-H-93.

Follow this link to apply for an introduction to the microscope.

Microscope

• inverted microscope (Olympus Inverted IX83)
• motorized xyz stage (IX3-SSU)
• Olympus Z-drift compensator (IX3-ZDC2)

Light Sources and Lasers

• Epifluorescence Lightsource
  • solid state LED and LDP - U-LGPS
  • 360 to 665 nm
• Laser lines for confocal imaging:
  • 405 nm, 445 nm, 488 nm, 561 nm, 594 nm, 640 nm
  • NIR: 685 nm, 730 nm, 785 nm

Objectives

Fluorescence Filters for Epifluorescence

For further details please contact the responsible persons.

Detectors

Accessories

• Inserts for ibidi slides, well plates and 35mm dishes
• Incubation system for live cell imaging (cellVIVO)
• Allows for a variety of experimental protocols with 0 - 20 % CO₂.
• Reliable control of temperature and CO₂ with up to 0.05 °C accuracy

Literature and Links

Guides - CLSM Evident Fluoview 4000

ibiology - Optical sectioning and confocal microscopy
