Slide Imaging System - Akoya - Vectra Polaris/PhenoImager HT (Schlieren)

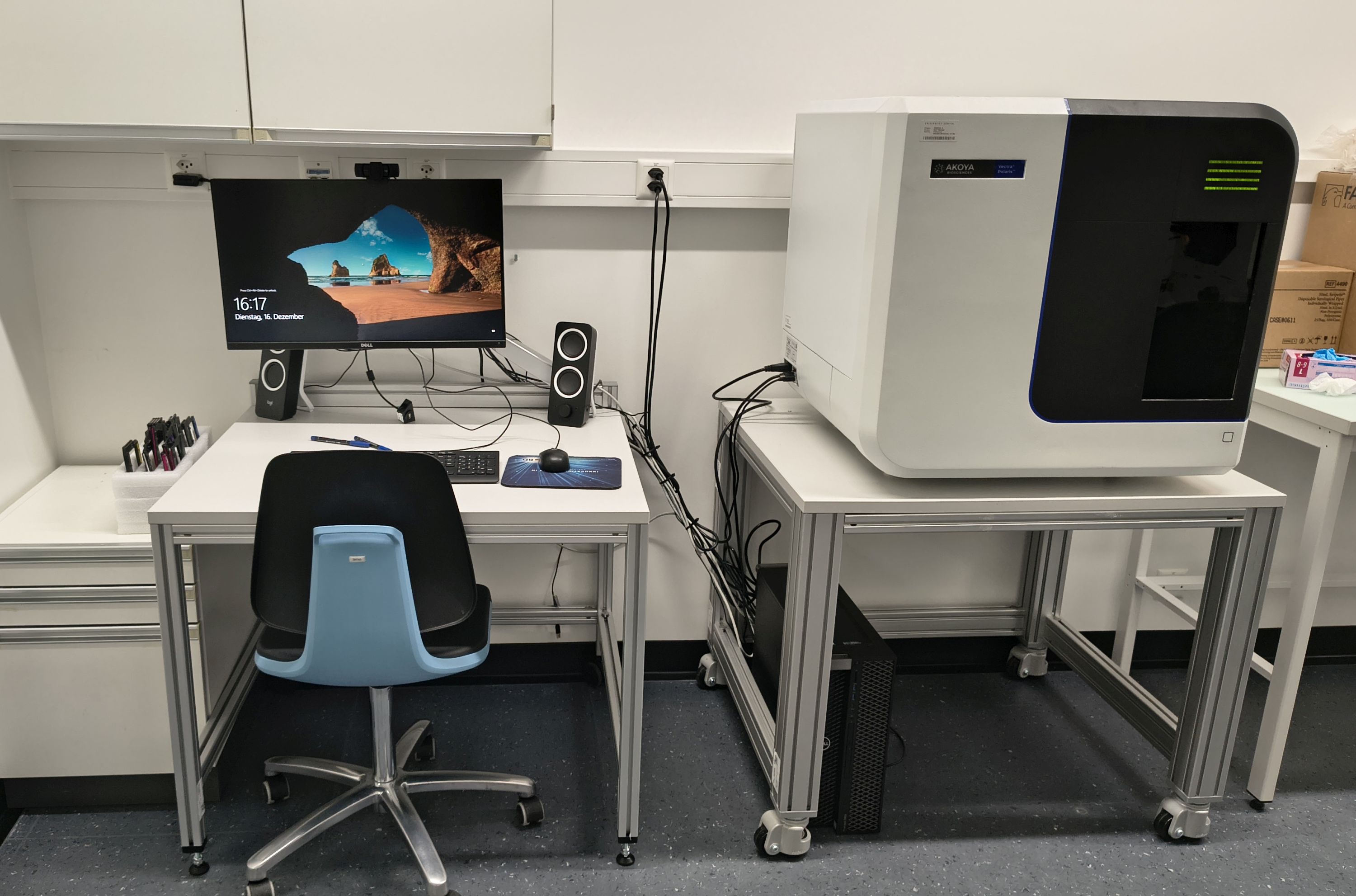

Slidescanner

Akoya’s Vectra Polaris (newly called PhenoImager™ HT) is an automated imaging system for performing whole slide scans of tissue sections and microarrays (TMAs), and for acquiring multispectral (MSI) regions of interest. The system has been optimized to image samples stained with Akoya’s Opal multiplexed fluorescent immunohistochemistry reagent kits and is also compatible with typical brightfield staining reagents. The Vectra Polaris is configured to store and inventory up to 80 slides.

Location

University Zurich, Schlieren Campus, Wagistrasse 12, WAD-K-105 (5th floor)



Training Request

Follow this link if you want to apply for an introduction to the microscope.

Technical Specifications

Microscope

  •  automated upright slide scanning microscope
  •  slide types: 25x75 mm (± 1.0mm) and 1 mm (± 0.10mm) thickness
  • coverslip thickness: 100µm, 170µm, 220µm, 300µm, 420µm

Light Sources

  • Transmitted: Xenon flashlamp
  • Fluorescence LEDs:  UV (380-390nm) / Violet (421-439nm) / Blue (464-486nm) / Yellow (509-591nm) / Red (629-647nm) / NIR (719-751nm)

Objectives (Nikon PL-APO)

Available options for fluorescent imaging

Pixel Size (Scan Setting)

 Objective Comment
used only for preview 4x / 0.2 NA
1.0 µm 10x 10x / 0.45 NA 2x2 binning applied
0.5 µm 20x (fast acquisition) 10x / 0.45 NA
0.5 µm 20x (better quality) 20x / 0.75 NA 2x2 binning applied
0.25 µm 40x 20x / 0.75 NA

Brightfield images are always recorded with 20x and final resolution is achieved by binning. The tube lens doubles the objective magnification if no binning is applied.

Fluorescence Filters

Filter Band Excitation (nm) Emission (nm) Alternative Dyes
Opal dyes
DAPI+Opal 570/690 DAPI 391/32 453/30 DAPI, Hochst
Opal 570 539/25 571/20 Alexa 555, RFP, tdTomato
Opal 690 649/50 709/40 Alexa 647, Cy5
Opal 520 Opal 520 486/30 532/18 FITC, Alexa 488, GFP
Opal 480/620/780 Opal 480 424/42 478/40
Opal 620 591/25 633/40 Alexa 594, Alexa 568
Opal 780 735/40 833/135
Additional filters primarily used for multispectral imaging (MSI)
DAPI+Opal 780 MSI DAPI 387/12 555/291
Opal 780 735/40 808/85
FITC FITC 480/40 510/LP
Cy3 Cy3 545/25 570/LP
Texas Red Texas Red 578/22 657/106
Opal 480 + Cy5 MSI Opal 480 424/42 518/125
Cy5 620/60 700/76

Note: DAPI, Opal 480, Opal 520, Opal 570, Opal 620, Opal 690 and Opal 780 can be combined and recorded without multispectral imaging (significantly faster acquisition). Adding Opal 540 or Opal 650 to the panel will require multispectral recordings.

Camera Systems

  • Hamamatsu C11440-50 Series (sCMOS image sensor)

Accessories

  • Phenochart (installed on instrument PC and on special VM A-D)
  • inForm (installed on instrument PC and on special VM A)

Remarks

To help you get familiar with the slidescanner and its software, please read the following operating manual:

Polaris User Manual (PDF, 5 MB)

Manuals for corresponding software Phenochart and inForm:

Phenochart (PDF, 6 MB)

inForm (PDF, 18 MB)



Responsible Persons

If you have questions about the device please contact the responsible person.



Make sure to acknowledge the Center for Microscopy in your publication to support us.

How to acknowledge contributions of the Center for Microscopy
