TEM - FEI Talos 120 (Irchel)

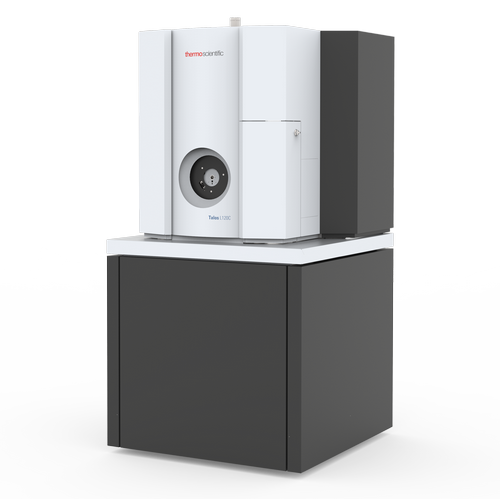

The FEI Talos 120 is a 120 kV transmission electron microscope equipped with one digital CMOS camera BM-Ceta for image acquisition.

Additional we have the MAPS software

MAPS is a modular software application for automated acquisition of high resolution images from large areas. (Navigate, Tile, Stitch, Correlate and Analyse Data)

MAPS allows you to:

• Acquire high resolution images over large areas
• Easily find regions of interest
• Acquire images from a sample with different settings
• Automate the image acquisition process (unattended operation)
• Correlate data from different sources

There is a free Offline MAPS Viewer on fei.com/software/maps/ and on our virtual machines (VM).

University Zurich, Irchel Campus, Room Y42-F-54.

Follow this link to apply for an introduction to the microscope.

Electron column

LaB6 electron source.

Acceleration voltage: 20 to 120 kV (aligned for 120 kV).

Detector Systems

Bottom mounted CMOS camera BM-Ceta (4k x 4k pixels).

Accessories

Goniometer: 4-axis, fully motorized stage.

FEI Sample holder for electron microscopy.

System controls

FEI control software.

MAPS Software

Literature and Links

Electron Microscopy, Methods and Protocols,Third Edition 2014 Series: Methods in Molecular Biology, Vol. 1117 Kuo, John (Ed.) ISBN: 978-1-62703-775-4

Biomedical Electron Microscopy, Illustrated Methods and Interpretations, Author(s): Arvid B. Maunsbach and Björn A. Afzelius, ISBN: 978-0-12-480610-8

Funktionelle Ultrastruktur, Atlas der Biologie und Pathologie von Geweben, Author(s): Pavelka, Margit, Roth, Jürgen, 2005 ISBN: 3-211-83563-6

Responsible Persons

If you have questions about the device please contact the responsible person.

Make sure to acknowledge the Center for Microscopy in your publication to support us.
