CLSM - Leica SP8 inverse FALCON (Irchel)

SP8_FALCON_H81

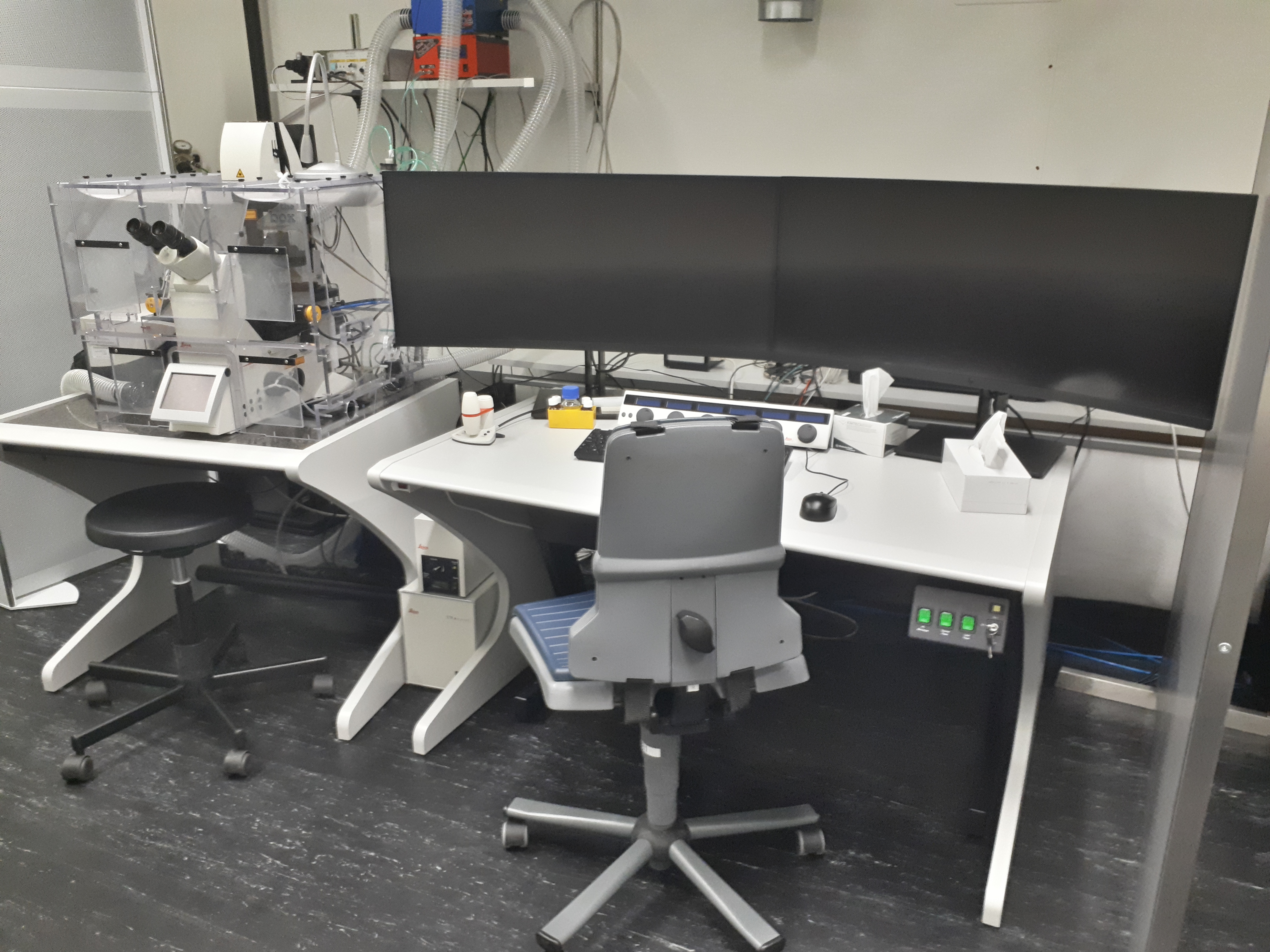

The Leica SP8 is an automated inverted confocal laser scanning microscope allowing simultaneous acquisition of 5 fluorescent channels and 1 transmitted light channel (BF). The system is equipped with a very flexible white light laser source and an additional 440 nm pulsed laser. Further, the SP8 FALCON (Fast Lifetime CONtrast) allows for Fluorescence Lifetime Imaging (FLIM) faster than conventional systems. A resonant scanner, climate chamber, including temperature and CO2/O2 controller (for hypoxia), favor confocal live cell studies.

Location

University Zurich, Irchel Campus, Room Y42-H-81.

Training Request

Follow this link to apply for an introduction to the microscope.

Technical Specifications

Microscope

  • inverted confocal microscope (Leica DMi8 CS with AFC, Model SP8)
  • 5 freely selectable emission detection windows
  • motorized x/y stage
  • 3D capability
  • time lapse capability

Light Sources and Lasers

  • Halogen lamp for transmitted light
  • External fluorescence lamp  LQ-HXP 120
  • Diode Lasers: 405 nm (50mW)
  • 440 nm laser: pulsed with a flexible repetition rate up to 40 MHz
  • White light laser (WLL): continuous laser output in the range of 470-670nm; AOTF allows to choose up to 8 different wavelengths simultaneously; pulsed laser system with a flexible repetition rate up to 80 MHz (pulse picker)

Scanners (tandem scanner system)

  • confocal point-scanning - optical sectioning
  • zoom function
  • scan field rotation
  • Regular scanner (field-of-view scanner): 1 Hz to 1800 Hz
  • Resonant scanner: 8 kHz

Detectors

  • 5 confocal fluorescence channels: two Photomultipliertubes (PMTs) and three super-sensitive FLIM capable photon-counting hybrid detectors (SMD HyDs, suitable for time gated detection)
  • one transmission light-channel (PMT-Trans)

Objectives

Name Magnification NA Immersion WD (mm)
HC PL FLUOTAR 10x 0.3 Air 11.0
HC PL APO corr CS2 20x 0.75 IMM 0.68
HC PL APO corr CS2 63x 1.3 Glycerol 0.3
HC PL APO CS2 63x 1.4 Oil 0.1
HC PL APO CS2 40x 1.1 Water 0.65
HC PL APO CS2 20x 0.75 Air 0.62

CS2 objectives: improved color correction, perfect VIS-405; IMM = multi immersion (either water, glycerol or oil)

Fluorescence Filters

Name Excitation Range Excitation Filter Dichroic Emission Filter
DAPI UV BP 350/50 400 BP 460/50
GFP blue BP 470/40 495 BP 525/50
RHOD green BP 546/10 560 BP 585/40

Accessories

  • Controlled environmental conditions (CO2 /O2, for studies under hypoxia,  temperature, humidity)
  • Ludin chambers for 12 and 18 mm cover glasses (reservation needed)
  • Matrix screening software (reservation needed)
  • Holders for slides and well plates

Literature and Links

Laser Scanning confocal Microscopy

ibiology - Optical Sectioning and Confocal Microscopy

Leica Science Lab



Responsible Persons

If you have questions about the device please contact the responsible person.



Make sure to acknowledge the Center for Microscopy in your publication to support us.
